Automatic feed pellet production line for birds, fish, turtles and pets

Automatic feed pellet production line for birds, fish, turtles and pets
Automatic feed pellet production line for birds, fish, turtles and pets Automatic feed pellet production line for birds, fish, turtles and pets Automatic feed pellet production line for birds, fish, turtles and pets Automatic feed pellet production line for birds, fish, turtles and pets

Büyük resim :  Automatic feed pellet production line for birds, fish, turtles and pets

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: MIKIM
Sertifika: CE
Model numarası: Kuşlar, balıklar, kaplumbağalar ve evcil hayvanlar için otomatik yem peleti üretim hattı
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1
Fiyat: 11000USD
Ambalaj bilgileri: Standart İhracat Paketleme
Teslim süresi: 5-8 iş günü
Ödeme koşulları: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini: 100T/H
İletişim

Automatic feed pellet production line for birds, fish, turtles and pets

Açıklama
Tip: Hayvan evcil hayvan yemi üretim hattı Hammadde: Mısır/pirinç/tahıl
Güç kaynağı: Elektrikli
Vurgulamak:

automatic feed pellet production line

,

pet feed pellet machine for birds

,

fish feed pellet production equipment

Automatic Feed Pellet Production Line for Birds, Fish, Turtles and Pets
Product Specifications
Type Animal Pet Feed Production Line
Raw Material Corn/rice/grain
Power Source Electric
Product Advantages
  • Quality: Maintains correct raw material ratios for consistent final product quality
  • Functionality: Produces various pet foods including dry kibble and treats
  • Productivity: Continuous operation improves speed and efficiency while reducing labor costs
Automatic feed pellet production line for birds, fish, turtles and pets 0
Technical Parameters
Size for whole line According to land size and layout
Pellet size 1-12mm
Capacity 5-10t/h
Workers requirements 4-5 people
Shipment requirements 5*40ft container
Range of application Large commercial aquatic/pets feed factory
Process Flow
1. Bucket elevator → 2. Raw materials cleaning system → 3. Silos for crusher → 4. Crusher → 5. Raw material automatic distribution weighing system → 6. Mixing system → 7. Second crushing system → 8. Raw material automatic distribution weighing system → 9. Second mixing system → 10. Extruder → 11. Drying system → 12. Screen system → 13. Seasoning machine → 14. Cooling system → 15. Packing system
Key Features
  • Nitrided alloy (38CrMoAl) screw for high strength and wear resistance with self-cleaning capabilities
  • Inverter speed control for feeding, extrusion, and cutting systems with food-grade stainless steel twin-screw feeder
  • Gearbox with automatic lubrication to extend gear life
  • Heat sink in transmission system for forced cooling
  • Water-cooled barrel suitable for various materials including corn, rice, wheat flour and starch
  • V-belt driven cutter fixed to die head
Detailed System Components
  • Raw material pretreatment system: Grinder and screener for ultra-fine grinding (80 mesh+) and impurity removal
  • Mixer: Twin-shaft paddle mixer with ≤5% variation coefficient and temperature control below 40°C
  • Conditioner: Steam heating at 85-90°C for 20-30 seconds for starch gelatinization
  • Extruder: Low-shear screw design with density control at 0.3-0.5g/cm³
  • Drying and Cooling System: Multi-layer belt dryer with staged temperature control (60°C → 50°C → 40°C) to ≤10% moisture content
Additional Specifications
  • Ingredients: Meat meal, fish meal, corn meal, soybean meal, and other grain meal
  • Products: Pellet feed including dog food, cat food, fish food, and bird food
  • Voltage: Three-phase 380V/50Hz or single-phase 220V/50Hz (customizable)
  • Materials: All machines made of food-grade stainless steel
Our Services
  • Factory layout planning tailored to your facility
  • Basic formula provision
  • Pre-shipment inspection and overseas installation/commissioning
  • On-site technician training for installation, operation and maintenance
  • Extruder maintenance training (cleaning, screw replacement, barrel changing)
  • English-language manuals provided
Finished Product Display
Automatic feed pellet production line for birds, fish, turtles and pets 1

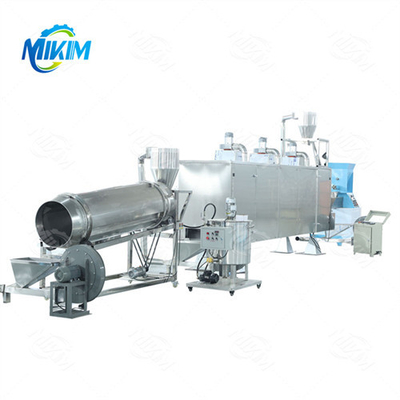

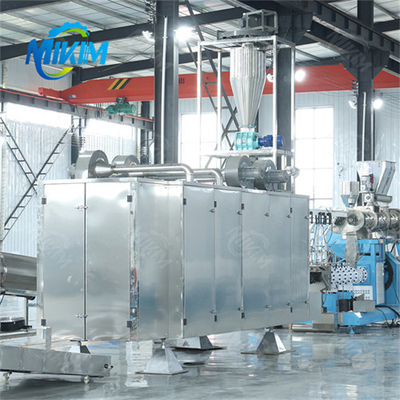

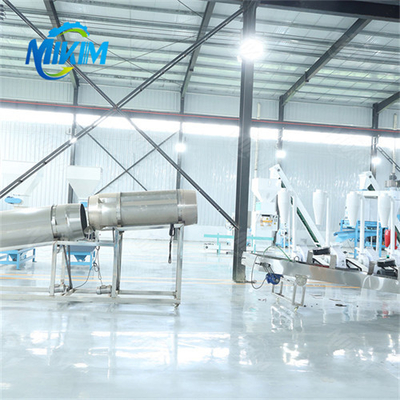

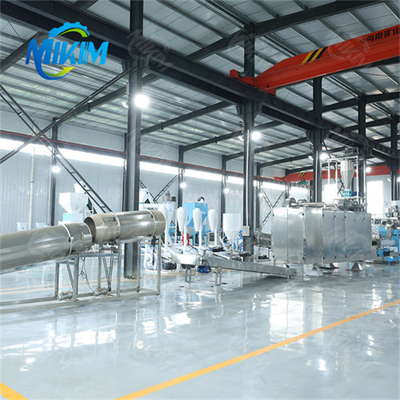

Equipment Photos
Automatic feed pellet production line for birds, fish, turtles and pets 2
Certificate of Honor
Automatic feed pellet production line for birds, fish, turtles and pets 3
