Pet food mainly provides the most basic nutrients for life support, growth and development, and health for all kinds of pets. It has the advantages of comprehensive nutrition, high digestibility, scientific formula, quality standards, easy feeding, and prevention of certain diseases.
Ingredients:
Ingredients include: flour, cornmeal, soybean meal, corn meal, meat meal, bone meal, fish meal, etc.
Application: After grinding and mixing, sieve to approximately 60-80 mesh.
Moisture content: Approximately 20%-25%.
| Size for whole line |
According to land size and layout. |
| Pellet size |
1-12mm |
| Capacity |
5-10t/h |
| Workers requirments |
4-5people |
| Shipment requirments |
5*40ft container |
| Range of application |
large commerical Aquatic/ pets feed factory |
| Process flow |
1.bucket elevator 2.raw materials cleaning system-3.silos for crusher 4.crusher 5.Raw material automatic distribution weighing system 6.mixing system 7.second crushing system 8.Raw material automatic distribution weighing system 9.second mixing system 10.extruder 11.drying system 12.screen system -13.seasoning machine 14.cooling system 15.packing system |
By replacing the molds in the pet food production machine, we can produce pet food in various shapes and sizes. This versatile machine can be used for a variety of pets and animals, including dogs, cats, fish, chickens, monkeys, birds, pigs, and more.
All cat food production lines are made of stainless steel. This pet food pellet machine features a rational design and a high degree of automation. The screws are made of alloy steel, and the machine has a building block structure and self-cleaning function.
Twin-screw pet food extruder features:
1. Centralized touchscreen control for accurate and convenient operation
2. Direct drive between the motor and the power distribution box for low energy consumption
3. Imported bearings for strong load-bearing capacity
4. The barrel is equipped with a water injection device to better meet raw material and quality requirements
Each part
hoist
The spiral elevator can transport feed pellets. It is clean, sanitary, easy to operate, strong and reliable.
mixer
The mixer is mainly used to mix feed raw materials, highly mixed without residue, mixed evenly, can help to make more nutritious feed pellets.
granulator
Puffing is the process by which moist, swellable starch or protein materials are plasticized in a tube by a combination of moisture, pressure.
cooler
Counterflow coolers are mainly used for feed cooling production lines with large feeds. The material is cooled in layers from bottom to top by the inhaled air. The air intake area is large, the cooling effect is good and the effect is significant.
packer
The device mainly consists of three parts: automatic weighing and packaging machine, conveying device and sewing device. It is mainly suitable for quantitative packaging of granular and granular powder mixed materials.
air blower
The air conveyor can transport the finished pellets to the dryer in an enclosed and pollution-free environment, making the pellets safer.
Finished product display
Our Services
1.) Pre-sales, sales, and after-sales consulting services;
2.) Project planning and design services;
3.) Equipment commissioning until everything is working properly;
4.) Management of long-distance equipment transportation from the seller's factory to the buyer's designated location;
5.) Equipment maintenance and personal operator training;
6.) New production processes and formulas;
7.) Provide a one-year full warranty and lifetime maintenance services.
For more information on process design, equipment layout, plant construction plan, single machine equipment quotation, turnkey quotation, etc., please feel free to contact us.

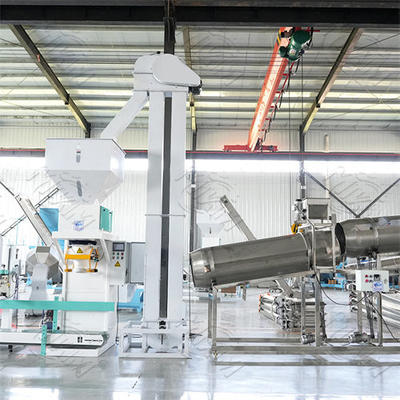

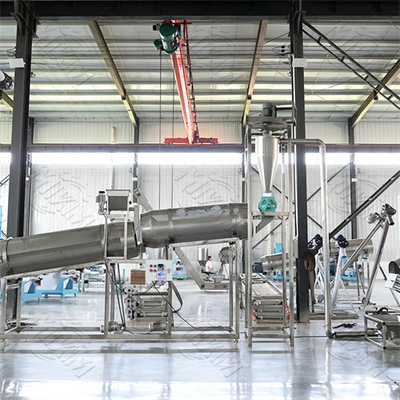

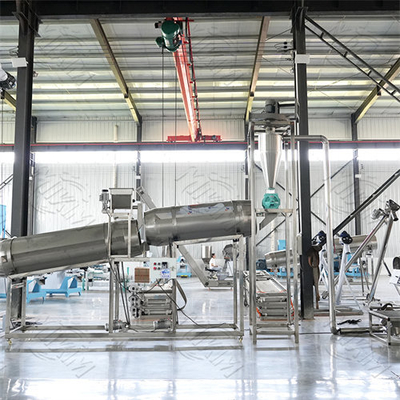

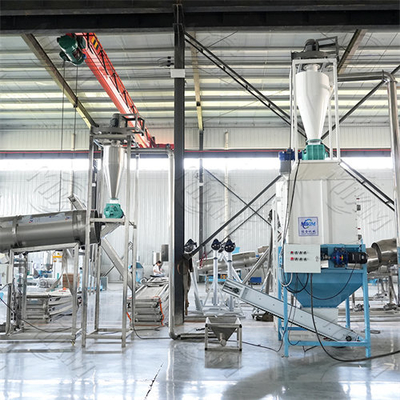

Equipment Photos
Qualifications and Honors
